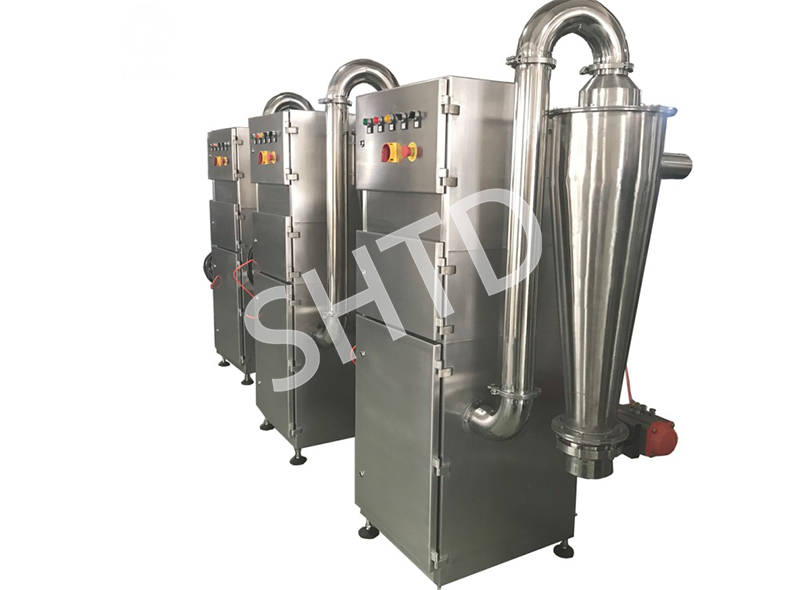

Dust collector
The gas with powder goes into the dust collector through inlet hose under pressure, air expansion
at this time, lower flow velocity will cause the large particles of powder separated from the gas
with powder and fells into the dust drawer under the gravity. Other tiny powder is adhered to
the filter’s outer wall with the air flowing direction and then clean by the vibration device. After
purification, the gas goes out from the top outlet through the filter and filter cloth.
(1). Elegant & splendid：Whole machine are made from full stainless steel including draught fan, it is accord with working environment of food grade.
(2). High efficiency：The single drum filter of folding micron grade can adsorb more powders.
(3). Strong strength：Special design of multi blade wind wheel with more stronger suction ability.
(4). Convenient cleaning：One-key type vibration cleaning powders, be more efficient to remove the powders which attached the cylinder filter, clean dusts efficiently.
(5). Humanization：Adding remote controlling system, be convenient to distance controlling equipments.
(6). Lower noises：Special insulation cotton reduce noises more efficiently.
Model no. | TDCC-1.5A | TDCC-2.2A | TDCC-3.0A | TDCC-4.0A | TDCC-5.0A | TDCC-7.5A |
Blowing rate (m3) | 750-1050 | 1350-1650 | 1700-2400 | 2650-3500 | 3800-4500 | 4800-7000 |
Pressure (Pa) | 940-690 | 960-580 | 1680-1100 | 1680-1100 | 1680-1100 | 1680-1100 |
Power (KW) | 1.62 | 2.32 | 3.12 | 4.12 | 5.62 | 7.62 |
Equipment max noise (dB) | 60 | 65 | 70 | 70 | 75 | 75 |
Dedusting rate (%) | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 |
Length（L） | 670 | 710 | 770 | 830 | 910 | 960 |
Width（W） | 550 | 630 | 670 | 720 | 760 | 800 |
Height（H） | 1620 | 1740 | 1810 | 1880 | 1970 | 2020 |
Filter Size (mm) | As per standard | |||||
Power Supply | 3P 208-415V 50/60Hz | |||||
Tandy machinery manufactures mixing
equipments, packaging equipments, conveying
equipments, checking weighers, industrial dust
collectors, batching systems. Many customers
use and recognize our products. It is with CE certification.
