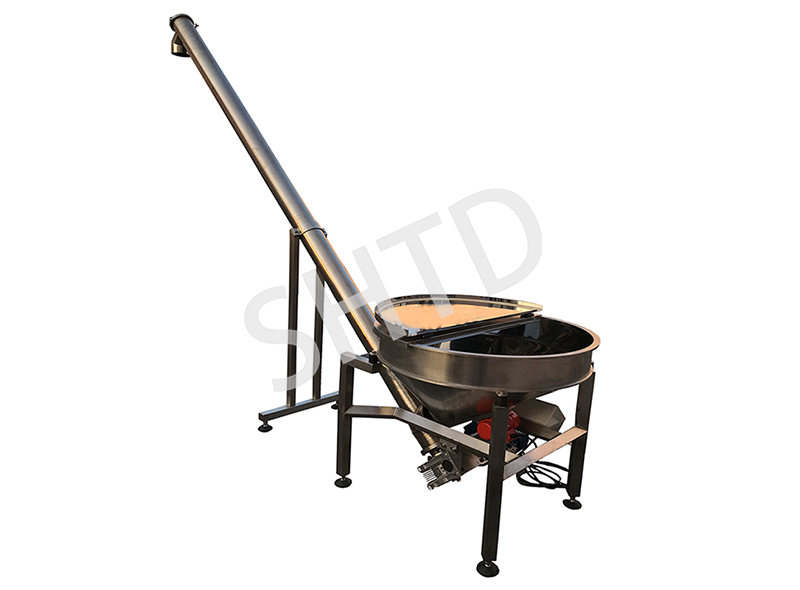

Screw conveyor
Charging angle: Standard 45 degree,30~60 degree are also available.
Charging Height: Standard 1.85M,1～5M could be designed and manufactured.
Square hopper, with vibrator, Round hopper could be designed and manufactured.
Fully stainless steel structure, contact parts SS304.
Power supply: 3P AC208-415V 50/60Hz
Remarks: Other Charging Capacity could be designed and manufactured.
MODEL NO. | TFD/TYD - 2 | TFD/TYD-3 | TFD/TYD-5 | TFD/TYD-7 | TFD/TYD -8 | TFD/TYD-12 |
Lifting Capacity | 2m3/h | 3m3/h | 5 m3/h | 7 m3/h | 8 m3/h | 12 m3/h |
Diameter of pipe | Φ102 | Φ114 | Φ141 | Φ159 | Φ168 | Φ219 |
Total power | As per standard or customized | |||||
Hopper Volume | 100L | 200L | 200L | 200L | 200L | 200L |
Thickness of Hopper | As per standard or customized | |||||
Thickness of Pipe | As per standard or customized | |||||
Outer dia.of Screw | As per standard or customized | |||||
Pitch | As per standard or customized | |||||
Thickness of Pitch | As per standard or customized | |||||
Dia. of Axis | As per standard or customized | |||||
Thickness of Axis | As per standard or customized | |||||
Tandy machinery manufactures mixing
equipments, packaging equipments, conveying
equipments, checking weighers, industrial dust
collectors, batching systems. Many customers
use and recognize our products. It is with CE certification.
Tandy machinery manufactures mixing
equipments, packaging equipments, conveying
equipments, checking weighers, industrial dust
collectors, batching systems. Many customers
use and recognize our products. It is with CE certification.
