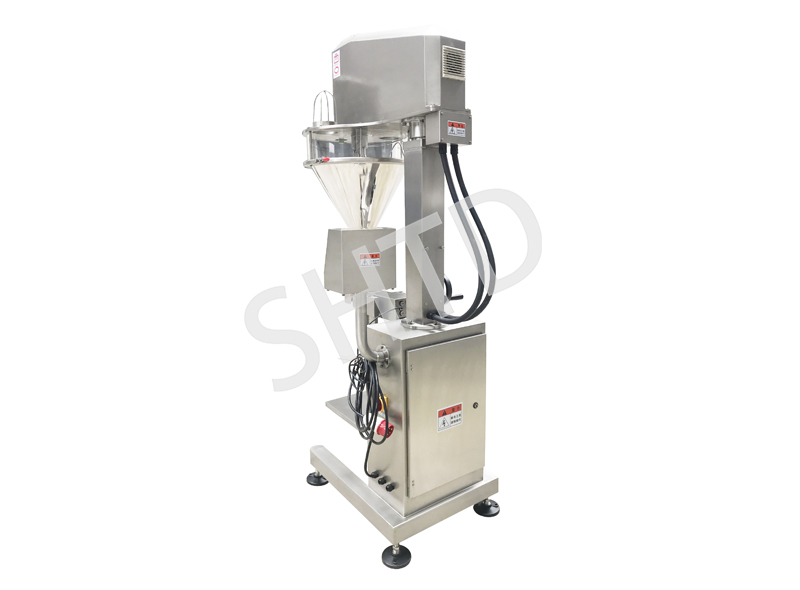

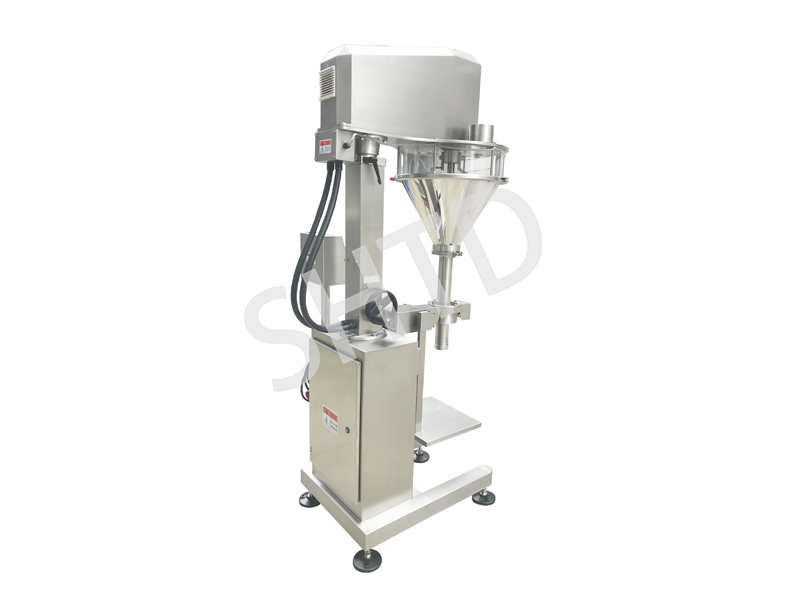

Semiautomatic auger filling machine by weighing
This series packing machines can handle weighing,filling functions etc.Featured with real-time
weighing and filling design these machine can be used to pack high accuracy required,with uneven
density,free flowing or non free flowing powder or small granule. I.e. Protein powder,food additive,
solid beverage,sugar,toner,veterinary and carbon powder etc.
* Stainless steel structure;Quick disconnecting or split hopper could be washed easily without tools.
* Servo motor drive screw.
* Pneumatic bag clamper and platform equip with load cell to handle two speeds filling as per preset weight.Featured with high speed and accuracy weighing system.
* PLC control, touch screen display, easy to operate.
* Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill by volume featured with high speed but low accuracy.Fill by weight featured with high accuracy but low speed.
* Save the parameter of different filling weight for different materials.To save 10 sets at most.
* Replacing the auger parts,it is suitable for material from super thin powder to granule.
Packing Weight | 1g - 500g |
Packing Accuracy | <100g,≤±1-2%; 100-500g, ≤±1%; |
Packing Speed | 5 - 15 times per min |
Power Supply | 3P AC208 - 415V 50/60Hz |
Compressed air | 6kg/cm3 0.1cbm/min |
Total Power | 0.93Kw |
Total Weight | 130kg |
Overall Dimension | 800×790×1900mm |
Hopper Volume | 25 L |
Tandy machinery manufactures mixing
equipments, packaging equipments, conveying
equipments, checking weighers, industrial dust
collectors, batching systems. Many customers
use and recognize our products. It is with CE certification.
